OUR EQUIPMENT

We have state-of-the-art equipment at Timberline Drilling, Inc. Click the tabs below to view all the different equipment we use on our drilling fleet. We serve locations across the United States wherever drilling needs to be done.

Rod handling and rod presenters allows the drill crew to work from a safer distance and away from the moving rods. This greatly reduces the risk of hand and back injuries associated with manually handling the rods.

OUR DRILLING FLEET

Atlas Copco U8

The U8 is the most powerful underground exploration rig on the market. They can be used above or below ground, in traditional core drilling and in special applications such as salt mines, coal mines and various types of construction. Thanks to the choice of feed frames and rotation units the rig can be adapted to fit many customers needs.

Basic Data

  • Max depth 2000 m (6600 ft) (B)
  • Max speed 1200 rpm
  • Max torque 2300 Nm (1630 lbf ft)
  • Feed/Pull force 133 kN (29000 lbf)
  • Feed lengths 1800 mm (70″)

Atlas Copco CS14

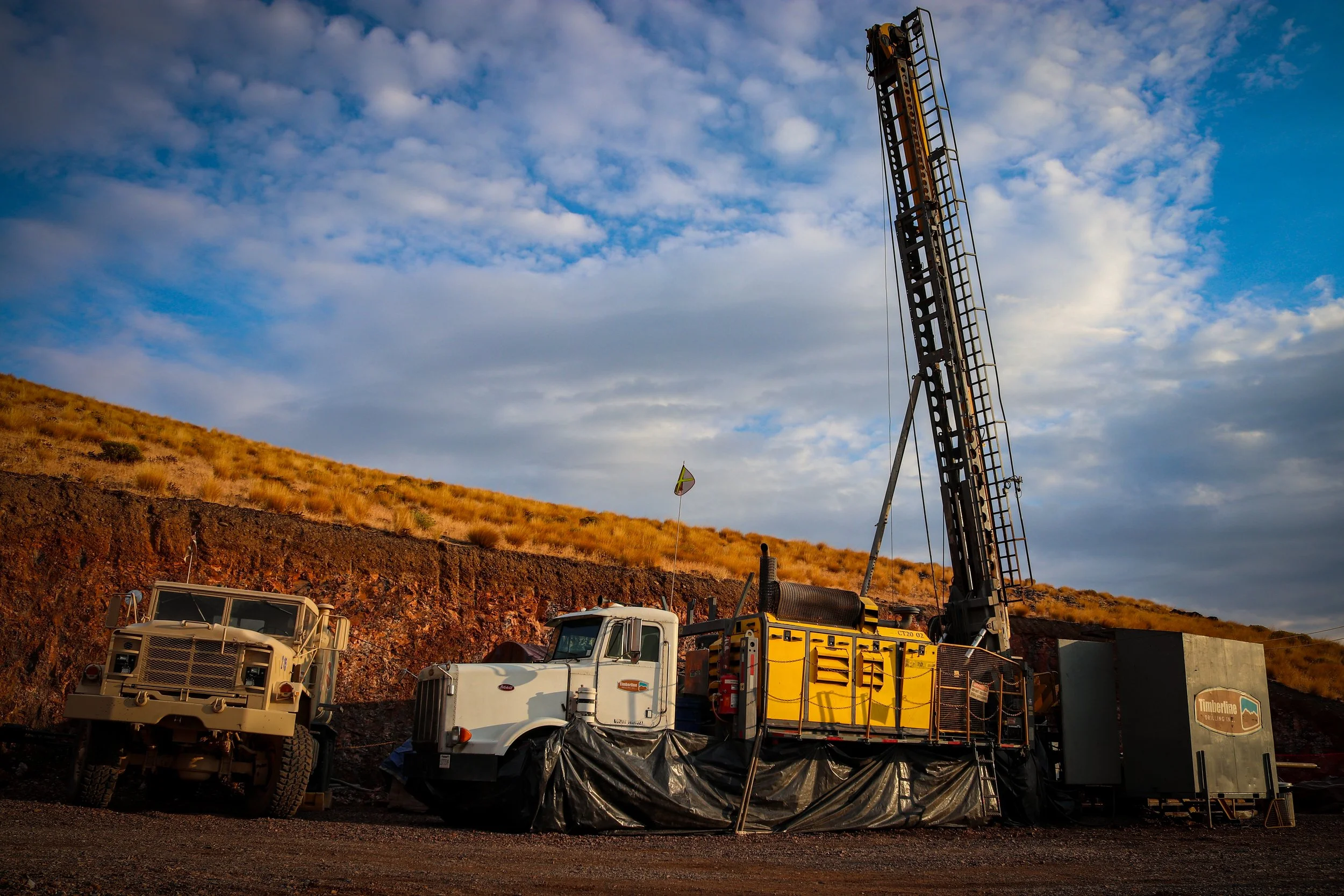

The CS14 is a powerful, track, truck, or marooka mounted surface rig capable of accessing the most remote drilling sites. This drill has proven its reliability in the most extreme climates. The rig is capable of angle drilling up to 45 degree off vertical and is fitted with a dump mast. This compact rig has been specifically designed for tight access and environmentally sensitive exploration drilling.

Basic Data

  • Depth capacity (NO) 1200 m (4042 ft)
  • Drill rod size, wire line B-P
  • Main hoist 80 kN (18.000 lb)
  • Lift capacity, feed 138 kN (31.020 lb)
  • Feed length 3,5 m (11,5 ft)
  • Rod pull length 6 m (20 ft)

Atlas Copco CS4002

For mining and environmental clients who want reliable, proven results in their coring program. A cornerstone of successful core drilling, the CS4002 truck mounted drill rig is the dependable solution for your exploration drilling needs.

Basic Data

  • Depth Capacity (NO) – 2450 m (8030 ft)
  • Drill rod size, wire line – B-P
  • Main Hoist – 178 kN (14.000 lb)
  • Lift Capacity, feed – 200 kN (45.000 lb)
  • Feed length – 3,35 m (11 ft)
  • Rod pull length – 9 m (30 ft)

Boart Longyear LF90

The LF90 is one of the most productive exploration drills in its class. Ideal for all types of traditional core drilling, its unique features make difficult jobs attainable. This drill features a larger power pack, increasing its depth capacity to 930 m/2950ft. Our specialized LF-90's come complete with a track and/or truck mounts to easily access the most locations.

Basic Data

  • Depth capacity 900 m (2950 ft)
  • Hydraulic rod making and breaking
  • Independent dual hydraulic mast raising cylinders
  • Hydraulic mast dumping capability up to 2,340 mm (92in)
  • Hydraulic, telescopic, 6 m (20 ft) pull mast for ease of setup
  • 7,258 kg (16,000) lb) capacity mainline hoist
  • Field Proven, patented, nitrogen gas spring Nitro-Chuck
  • High drilling torque for productive drilling at depth

Sandvik DE130

Formerly known as the Hagby 1000; this drill has revolutionized the drilling industry proving itself to be the most reliable, economic drill on the market in both surface and underground sites. This drill meets numerous application requirements allowing us to fulfill even the most unusual customer requests.

Basic Data

  • Feed length (underground) 1700 mm (5'7")
  • Total length (underground) 3065 mm (10')
  • Feeding force 46.1 kN (10350 lbs)
  • Pulling force 61.5 kN (13820 lbs)
  • Feed rate, drilling max 0.04 m/s (1.5"/s)
  • Feed rate, rod running, max 1.1 m/s (43"/s)

Sandvik DE140

The DE140 is an outstanding choice for both underground and surface use. The DE140 is designed to meet the requirements from the market for deeper and larger holes. The DE140 for underground use is powered by either a 55 kW or 90 kW Power Unit. For surface use 92 kW or 147 kW Diesel Power Packs. The Max Torque control enables optimal balance of torque and rotation speed.

Basic Data

  • Feed length (underground) 17010 mm (5'6")
  • Total length (underground) 3018mm
  • Feeding force 92.2 kN
  • Pulling force 92.2 kN
  • Feed rate, rod running, max 1.1 m/s (43"/s)

Smart 8

The Diamec Smart range of drills sets the standard for underground core drilling rigs. The Smart 8 delivers high productivity and low operational costs within underground deep hole coring. When equipped with a rod-handling system, the Smart 8 significantly reduces hazardous operations in the drilling process, while also reducing operator fatigue by performing a number of tasks automatically. Advanced data management makes it possible to analyze data, which improves drilling productivity and lowers overall costs.

Basic Data

  • 3 Rigs
  • Underground Drilling
  • Surface Drilling
  • Skid Mounted
  • Rod Presenter Available

CS3001

Power, dependability, and versatility describe this truck and track mounted rig. Power to achieve success on deep holes. Dependable in extreme weather conditions. Versatility comes with the track mount, which allows this rig to get to areas that most deep-hole rigs cannot.

Basic Data

  • 4 Rigs
  • Surface Drilling
  • Truck Mounted / Track Mounted

DR900

The DR 900 is a compact, state-of-the-art drill rig which delivers optimum production at a lower cost. Equipped with a Uni-Drill system, the DR900-MU is mounted to a wheeled carrier, allowing safe and efficient drill moves that drastically lower a programs overall cost.

Basic Data

  • 3 Rigs
  • Underground Drilling
  • Mobile (Wheeled Carrier) Drill Rig

U8

The U8 is the most powerful underground exploration rig on the market. We can use the U8 on surface or underground, in traditional core drilling and in special applications such as salt mines, coal mines, and various types of construction.

Basic Data

  • 24 Rigs
  • Surface Drilling
  • Underground Drilling
  • Skid Mounted
  • Rod Presenter Available

Smart 6

The Diamec Smart range of drills sets the standard for underground core drilling rigs. The Smart 6 is equipped with an advanced Rig Control System which enables automatic drilling from a safe distance. Drilling parameters are easily set and monitored from the touch screen on the remote control panel. With rod-handling as an option, the Smart 6 delivers exceptional safety and productivity for shallow hole programs that require a small footprint.

Basic Data

  • 1 Rig
  • Underground Drilling
  • Skid Mounted
